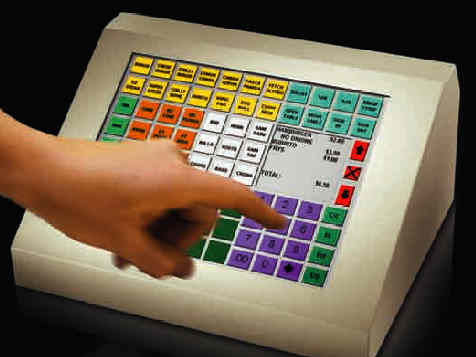

The Javelin Wedge is a network ready, fully integrated LCD touchscreen workstation
optimized for ease of use and high
performance. This terminal is LAN ready with support for Windows, NT, DOS, OS/2, or
network based software.
Ergonomics include an extremely small profile chassis offering maximum work space and
silent operation. The Javelin
Wedge offers unmatched price performance for an integrated Point-of-Sale solution that
includes all the features and
economies of scale of a desktop 486/586 or Pentium PC. This PC workstation is ideal for
Quick Service, Table Service
(Fine Dining), Hospitality (Hotel Food Service), Retail, Industrial, and general kiosk
applications.
The series offers LCD touchscreen display options of 10.4" or 12.1" in TFT
Active Matrix color. This industry standard
solution supports off-the-shelf GUI software to meet a wide variety of application and
user needs. The Javelin Wedge
supports 586 and Pentium based microprocessors from 133MHz to 233MHz and system memory
from 8MB up to 128MB
to meet any current and future software requirements.
Features
Supports 5x86 and Pentium based CPU's
4MB to 128MB EDO RAM, dual SIMM
Integrated PCI VGA, I/O and LAN interfaces for high
performance
LAN ready with support for Windows 95, WFW 3.11, NT,
DOS, and Network POS software.
Remote or local boot capable.
Display
Integrated resistive membrane touscreen, mouse type
emulation
Super-twist LCD in 10.4" or 12.1" TFT Active Matrix Color
(12.1" 800 x 600 resolution only)
Fluid resistant with unporous gasket
Sleepmode when touchscreen is inactive for extended life
Software
LAN drivers for multiple networks
Enhanced video drivers
Flash BIOS for simple upgrades
Touch screen mouse-type emulation driver
Operating Systems
Windows 3.11, Windows '95, Windows NT
DOS
Novell Netware 3.x/4.x
Peer to Peer networks including LANtastic
Others including TCP/IP, ODI, and NDIS based networks
Video Interface and Connectivity
Integrated VGA LCD controller w/GUI accelerator
1MB Video Memory, PCI based, capable of displaying 16
bit (Hi Color)
Integrated 10BaseT Ethernet controller (NE 2000 5x86
model) (NE 3200 Pentium model)
Software controlled I/O port addresses and IRQ settings
Peripherals
Integrated Local Bus enhanced IDE controller supporting a
3.5" HDD, ATA enhanced modes
(2) Integrated serial ports for internal touchscreen and
customer display option
(4) 16550 type serial ports with RJ 45 connections
(2) 24 Volt dedicated cash drawer ports
(1) Enhanced parallel port
PS/2 Keyboard port for keyboard and/or magnetic card
reader
External floppy drive port
Physical Dimensions
12.75" (w) x 6.0" (h) x 10.25" (d)
30 cm (w) x 14 cm (h) x 25 cm (d)
Weight .... 12 lbs (5.45 kg)
Power .... External Power Adapter
100-240 VAC .8A/50/60 Hz (Auto-Ranging)
Temperature .... Operating 0 to 45 degrees Celsius
Storage .... -25 to 85 degrees Celsius
Humidity .... 95% non-condensing
Safety .... UL, CSA, CE
EMI .... FCC Class A
